Desktop Single-sided Card Printer

SEAORY S21

S21 Desktop Single-sided Card Printer

Dye sublimation Direct-to-card Card printer

Defaulted print resolution: 300 dpi × 300 dpi

300 dpi × 600 dpi print resolution optional

LCM control panel Support Multi-languages,128MB Memory

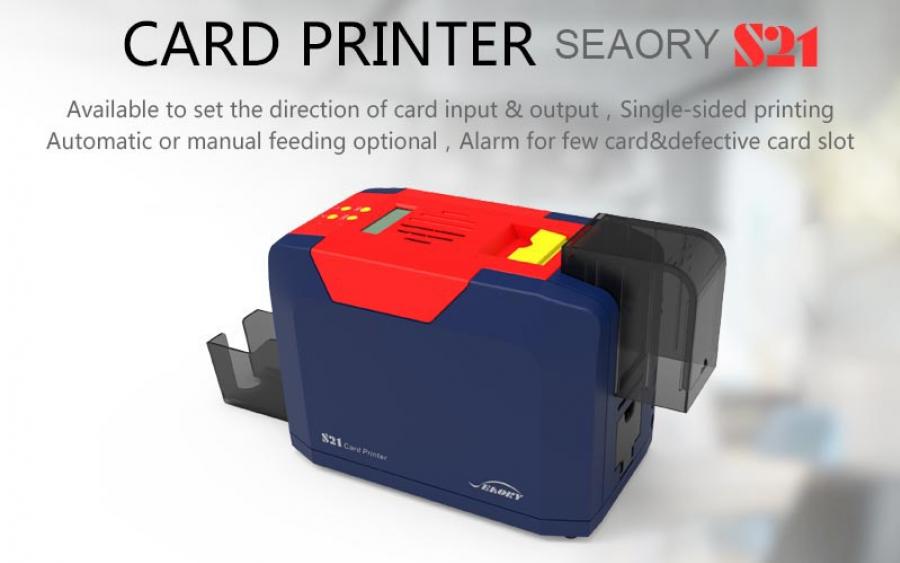

Available to set the direction of card input & output, Single-sided printing, Alarm for defective card slot

Body size: 293(L) × 174(W) × 208(H)mm ; N.W: 4.9 Kg

High quality , High efficiency

Monochrome printing :3~5s per card (Single-sided)

Full-color(YMCKO) printing :20s per card(Single-sided)

Print dimension is ISO CR80(53.98mmx85.6mm) standard card

Input hopper capacity is 100pcs cards

Output hopper capacity is 50pcs cards

Defective card slot capacity is 30pcs cards

Designed for large quantity & low cost printing

Black Monochrome Ribbon: 100m×60mm/200m×60mm, around 1,000/2,000 prints/roll

Gold, Silver, White, Red, Blue Monochrome Ribbons:100m×60mm,around 1,000 prints/roll

YMCKO ribbon full panel: 300 prints/roll

1/2 ymcKO ribbon, 450 prints/roll

KO, 500 prints/roll

Variety of card encoding module

Magnetic stripe card encoding module: Support ISO7811 Hi-co/Low-co, 3-Track read & write

Dual interface chip card reading and writing module:

Support CPU card (ISO 7816, T=1 & T=0)

4 SAM slots (same as SIM card size complied with GSM 11.11)

Support contactless CPU card (ISO14443 TYPE A/B),PC/SC

Contactless ID card encoding module : Support 125KHz (Specified chip type)

UHF Chip card encoding module: Support EPC C1 GEN2/ ISO 18000 -6C Air interface protocol standard
